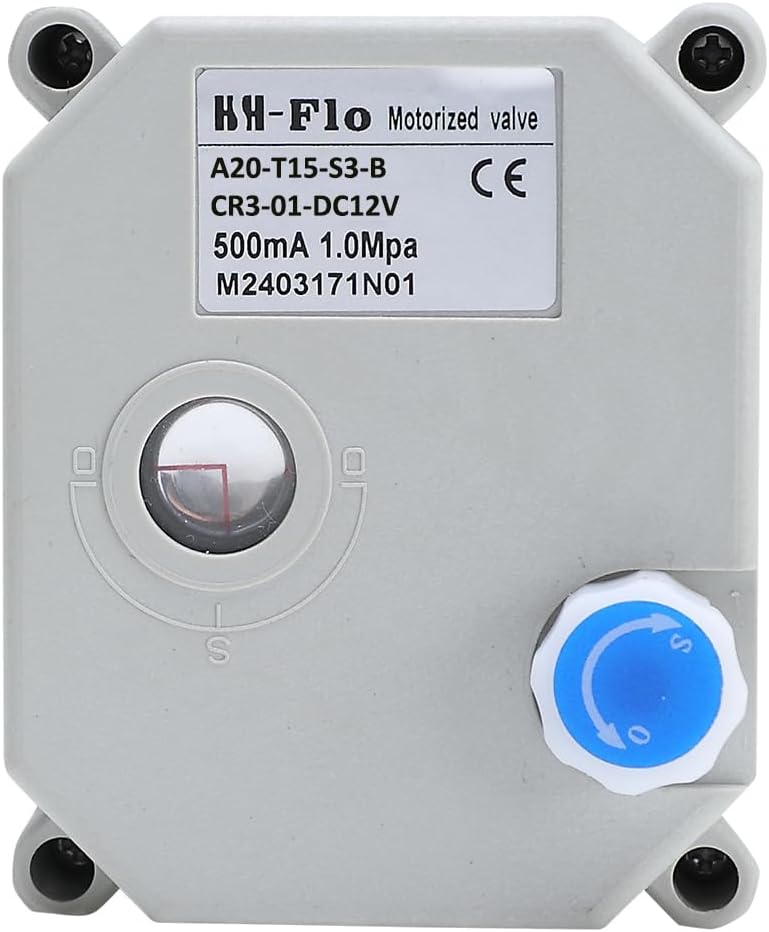

1/2 inch 12VDC 3 Way L Port Stainless Steel 304 Electrical Power On/Off Motorized Ball Valve

Technical Parameters:◎Valve Body Diameter: 1/2 inch NPT L Port;◎Valve Body Material: Stainless Steel 304; ◎Actuator Material: Engineering Plastics; ◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR301-B (Power To Open, Power To Closed);◎Working Voltage: 12VDC Only;◎Working Current: ≤ 500mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤ 5sec;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 3 N.m.;◎Cable Length: 0.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: YES;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);Manual Override Instructions:◎In case of anelectric supply failure, it is possible to operate the actuator manually.◎Power must in off position when start the manual override.◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

• 12VDC Only Working Voltage, Built-In Limit Switches;
• Power To Open and Power To Closed, Not Auto Return;
• With Manual Override For Added Control And A Handle For On/Off Operation In The Event Of Power Outage;
• CR3-01 3-Wires Control Wiring For Flexible Usage Scenarios. With No Auto Return When Power Is Off, This Valve Is Perfect For Multiple Applications;
• 1/4 inch NPT Thread Stainless Steel Lead Free Three Way L Flow Valve Body, FKM & PTFE Sealing Material, 145 PSI Working Voltage, Suitable For HVAC, Water Treatment, Automatic Control System etc.
