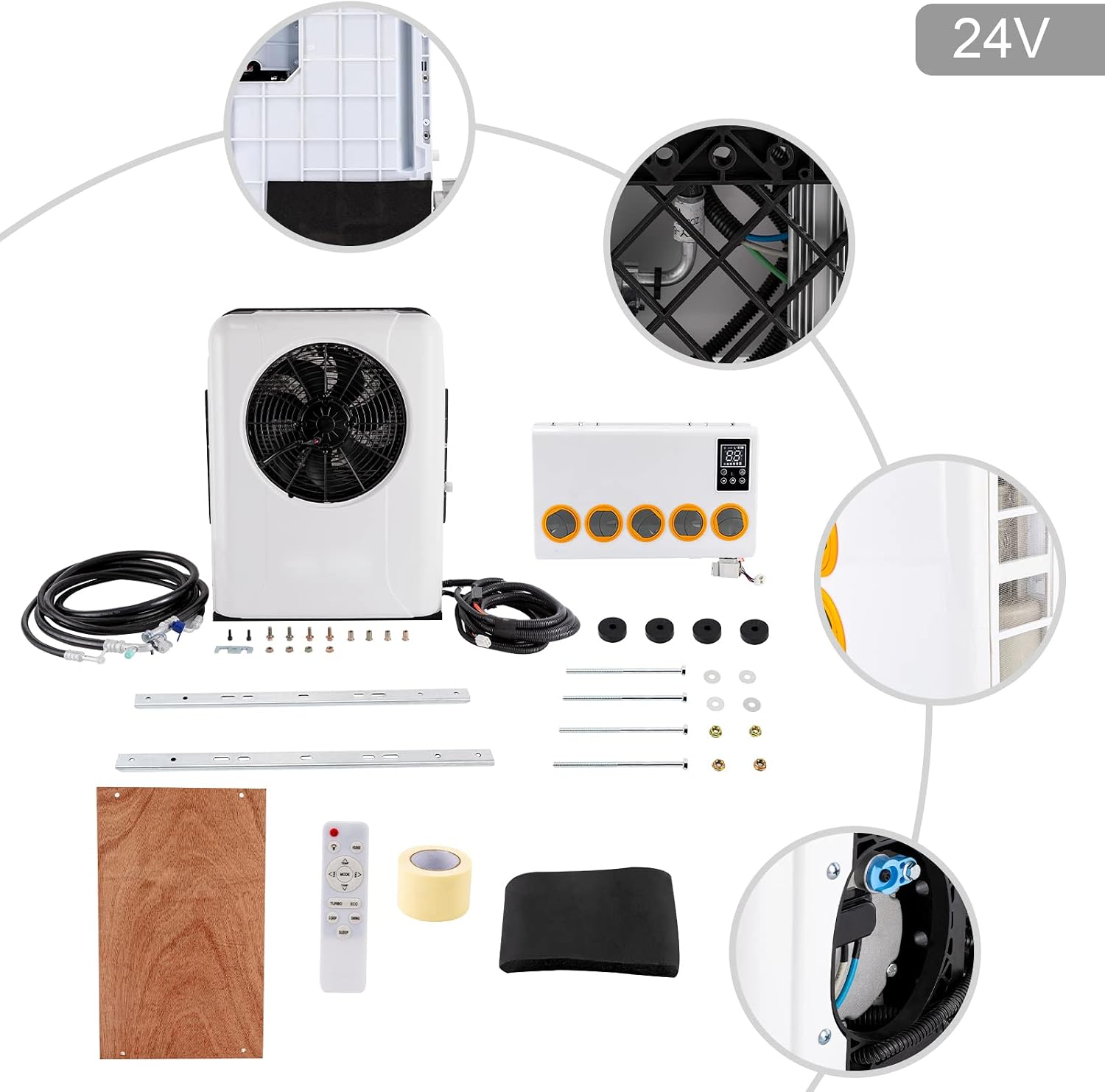

Air Conditioner Split, 12000BTU 950W 24V DC Truck Cab A/C Kit Portable RV Air Conditioners Split AC Set with Outdoor Indoor Unit & Remote Control for Trailers, Heavy Trucks, School Buses

SpecificationsApplicable Models: Car (Cab Within 6㎡/64ft²)Color: Black, WhiteVoltage: 24VRated Power: 950WCondition: NewMaterial: Copper, Aluminium, ABSInstallation Position: Inside the Cab; Outside the CabRefrigerating Capacity: 1000W-3000W (3400-10238BTU)Oil: 90ml-120ml/0.02-0.03gal POE68 （included）Speed Range: 1000-3000rpmWay of Use: Direct ReplacementNumber of Pieces: 2Outdoor Unit Size: 49*21*66cm/19.3*8.3*26inchIndoor Unit Size：49*33cm/19.3*13inchlength of high and low pressure hoses：3 metersInstallationRemove the outer casing.Select the installation position and mark the punch position. (Select 5 installation points)Punch holes at the mark points. (Tool: an 8mm/0.3inch drill)Use a pull riveter to fix the pull rivet nut at the marked hole.Fixed the damping pad and sleeve at the marked points on the external machine.Fixed the external machine.Install the internal machine: install an expansion valve.Fixed internal machine mounting plate.Fixed the internal machine.3/8inch pipe (high-pressure pipe) connected to the condenser.Connect internal and external machine wires and power cord.Connect internal and external pipes, and fixed the evaporation box.Connect internal and external wires.Install the drainage pipe.Vacuum for 15-20 minutes.The power cord is connected to the battery.Install the outer casing.Winding tape to fix the internal and external machine connecting pipe and the internal and external machine connecting wire.The installation is complete.FeaturesBrand New, With High QualityDirect ReplacementTrouble-free InstallationStylish AppearanceStrong and DurableExquisite WorkmanshipEasy to CleanStable PerformanceLong Service LifeRemote ControlFits (As a Reference)For car (Cab Within 6㎡/64ft²).Package Included1* Air Conditioner Kit1* Remote ControlOther Accessories for Assembly

• High Quality Material: The energy-efficient whirlpool compressor, the anti-vibration hoses, the aluminum heat exchangers, and the ABS shell of the outdoor unit with injection molding process offer corrosion and wear resistance, and longer stable performance.
• Good Cooling Effect: The parking air conditioner is a kind of in-car air conditioner. It uses the on-board battery DC power supply (24V) to make the air conditioner run continuously to adjust and control the temperature, humidity, flow rate, and other parameters of the ambient air in the car, to fully meet the comfortable cooling needs of the truck driver.
• Saving Energy: The parking air conditioner works with a truck battery without an engine. Meanwhile, it adopts digital frequency conversion and allows you to use the energy-saving mode when you sleep at night, saving you lots of energy.
• Long Endurance: It can work continuously for about 6 to 8 hours on a full charge, which can meet your daily needs.
• Easy to Install: The outdoor unit can be installed on vehicles horizontally or vertically, which can be applied in different scenarios.
